Microphone Shure SLX14/BETA98H

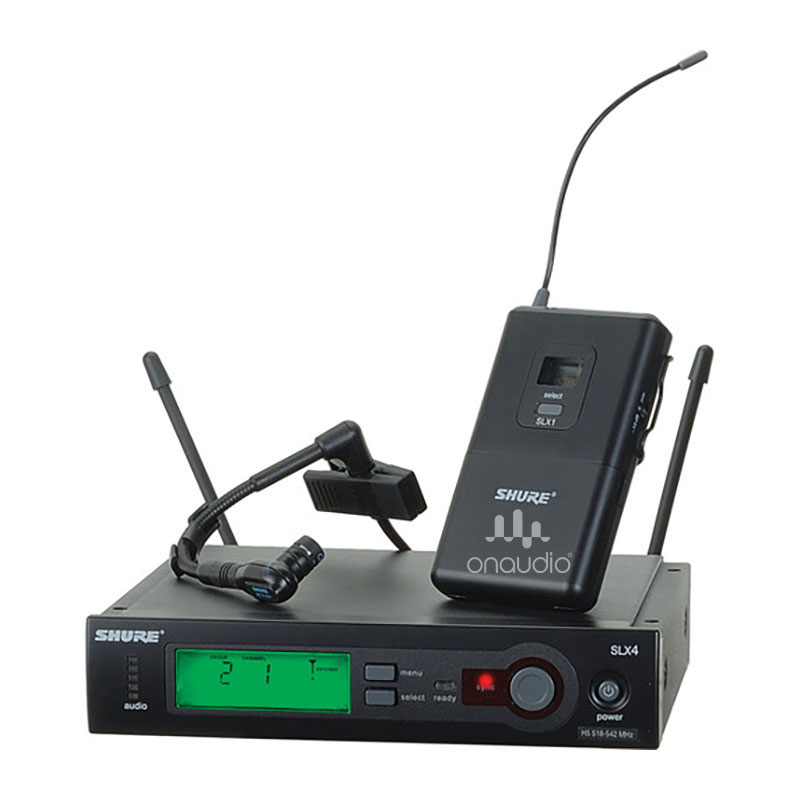

Hệ thống SLX Bodypack, gồm Bộ nhận Đa năng SLX4, Bộ phát di động SLX1 Và Micro nhạc cụ Beta98H/C

FEATURESSLX4 Wireless Receiver:

Automatic Frequency Selection
Automatic Transmitter Setup
960 Selectable frequencies across 24MHz bandwidth
Detachable 1/4 wave antennas
Microprocessor-controlled diversity
RF presence LED
5-segment audio meter
Multi-function, backlit LCD
Low battery indicator
Frequency and power lockout
Rugged metal chassis
Volume control on rear of unit
1/2 rack design
Furnished rack hardware
Non-slip bumpers for use out of rack
XLR and 1/4″ outputs

WB98H/C Clip-On Cardioid Condenser Instrument Microphone

Transformerless preamplifier circuitry, which improves linearity across the full frequency range
High gain-before-feedback
Excellent rejection of unwanted noise
High maximum sound pressure level (SPL) enables it to handle the extreme demands of brass, woodwind and percussion instruments
Tailored frequency response for studio quality performance
Wide dynamic range for use in high SPL environments
Uniform supercardioid pattern for high gain before feedback and superior rejection of off-axis sound
Compact design reduces stage clutter
Detachable cable for easy storage
Legendary Shure quality, ruggedness, and reliability

SLX1 Bodypack Transmitter

Automatic Transmitter Setup
Backlit LCD with timeout feature
Frequency and power lockout
3-segment battery fuel gauge
2 AA batteries (included) provide 8 hours of continuous use
518 – 782 MHz operating range

別れさせ屋方法.com/

Thông tin bổ sung

SLX4 Wireless Receiver	Audio Output Level (ref. ± 38kHz deviation with 1kHz tone): XLR connector (into 600 Ohm load): —13dBV; 1/4" connector (into 3000 Ohm load): —2dBV Output Impedance: XLR connector: 200 Ohms; 1/4" connector: 1kohms XLR output: Impedance balanced; Pin 1: Ground; Pin 2: (+); Pin 3: (-) Sensitivity: —105 dBm for 12 dB SINAD, typical Image Rejection: >70 dB, typical Power Requirements: 12—18 Vdc at 150 mA, supplied by external power supply Operating Range Under Typical Conditions: 300 ft. (100m) Note: Actual range depends on RF signal absorption, reflection, and interference Audio Frequency Response (+/— 2 dB): Minimum: 45 Hz: Maximum: 15 kHz Note: Overall system frequency depends on microphone element. Total Harmonic Distortion (ref. +/— 38 kHz deviation, 1 kHz tone): 0.5%, typical Dynamic Range: >100 dB A-weighted Operating Temperature Range: —18 degree C (0 degree F) to +50 degree C (+122 degree F) Note: battery characteristics may limit this range Dimensions (H x W x D): 1.65 x 7.76 x 5.28", (42 x 197 x 134mm) Weight: 1lb. 13oz. (816g ) Housing: Galvanized steel Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4" output Logic Connections: Pin 1: Logic output, Transmitter Mute Status. Mute=low (0 V). Sinks up to 100 mA. Absolute maximum -0.7 to 5.5V DC; Pin 2: Logic ground; Pin 3: Logic output, Battery Status. Good=low (0 V). Sinks up to 100 mA; Absolute maximum -0.7 to 5.5V DC
WB98H/C Clip-On Cardioid Condenser Instrument Microphone	Type: Condenser (electret bias) Frequency Response: 20 to 20,000 Hz Polar Pattern: Supercardioid (as supplied), uniform with frequency, symmetrical about axis (Cartridge for cardioid polar pattern also available—sold separately) Output Level (at 1,000 Hz): Open Circuit Voltage: -59 dBV/Pa* (1 mV) typical, *1 Pa = 94 dB SPL Maximum SPL: (20 Hz to 20 kHz, less than 1% THD): 2.5 kilohm load: 160 dB, 1 kilohm load: 156 dB Preamplifier Output Clipping Level: (20 Hz to 20 kHz, less than 1% THD): 2.5 kilohm load: + 6 dBV (2.0 V), 1 kilohm load: + 2 dBV (1.26 V) Dynamic Range: (at 20 Hz to 20 kHz, less than 1% THD, 2.5 kilohm load): 125dB (max SPL minus A-weighted noise) Output Noise: 35dB SPL, A-weighted Signal-to-Noise Ratio: 59dB re 94dB SPL Output Impedance: Rated at 150 ohms (actual) Recommended minimum load impedance: 1 kilohm Hum Pickup: -7.5dB equivalent SPL in 1 mOe field (60Hz) Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 Phantom Power: 48 Vdc +/- 4 Vdc(IEC-268-15/DIN 45 596), positive pins 2 and 3 Case: Microphone: Matte black enamel brass case and stainless steel inner grille, Preamplifier: Matte black enamel finished steel Dimensions: Microphone: 11.7mm x 35.6mm (0.46" X 1.40"), Preamplifier: 20mm x 99mm (0.79" X 3.89") Net Weight: Microphone: 12g (0.4oz) less cable, Preamplifier: 96g (3.4oz)
SLX1 Bodypack Transmitter	Audio Input Level: -10 dBV maximum at mic gain position, +10 dBV maximum at 0 dB gain position, +20 dBV maximum at -10 dB gain position Gain Adjustment Range: 30dB Input Impedance: 1 Mohms RF Transmitter Output: 30 mW maximum (dependent on applicable country regulations Dimensions (H x W x D): 4.25 x 2.50 x 0.75 in. (108 x 64 x 19 mmD) Weight: 81 grams (3 oz.) without batteries Housing: Molded ABS case Power Requirements: 2 "AA" size alkaline or rechargeable batteries Battery Life: >8 hours (alkaline)
