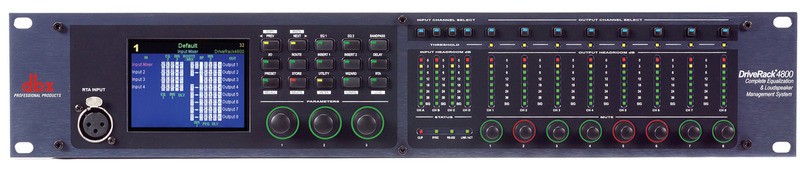

DBX DriveRack 4800

Model: DBX DriveRack 4800

Hãng: DBX/Mỹ (Chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Mỹ

Bảo Hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 127.800.000 vnđ

DriveRack 4800 4 x 8 Loudspeaker Management Processor

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

Features

48 and 96 kHz operation

Color QVGA Display

4 analog and AES/EBU inputs

8 analog and AES/EBU outputs

Optional Jensen® I/O Transformers

Full Bandpass Filter, Crossover and Routing Configurations with Bessel, Butterworth, and Linkwitz-Riley filters

31-Band Graphic and 9-band Parametric EQ on every input

6-band Parametric EQ on every output

Loudspeaker Cluster and driver Alignment Delays

Selectable DSP inserts on all inputs and outputs including Classic dbx Compression, Limiting and Advanced Feedback Suppression among others

Ethernet HiQnet™ networking control

dbx ZC wall panel control

THÔNG SỐ KỸ THUẬT:

Input	(4) total
Input Connectors	Female XLR
Input Type	Electronically balanced, RF filtered
Insert Impedance	>50k ohm
Max Input	Software selectable for: +28, +26, +24, +22, +20, +18, +16, +14 dBu
CMRR	>40 dB typical, >55 dB at 1 kHz
Digital Inputs	(4) AES/EBU Channels
Digital Input Connectors	Female XLR
Digital Input Type	Transformer Isolated, RF filtered
Digital Input Impedance	>110 ohms
Mic Preamp Connector	(RTA) - (1) Female XLR
Mic Preamp gain	(RTA) 10dB to 50dB in 10dB increments
Output	8 total
Output Connectors	Male XLR
Output Type	Electronically balanced, RF filtered
Output Impedance	30 ohms
Max Output	Software selectable for: +24, +22, +20, +12, +8, +4 dBu
Digital Output	(8) AES/EBU Channels
Digital Output Connector	Male XLR
Digital Output Type	Transformer Isolated, RF filtered
Digital Output Impedance	>110 ohms
A/D Converter	dbx Typve IV™ Converstion System
A/D Dynamic Range	>114 dB unweighted, 116dB A-weighted
Type IV Dynamic Range	128dB with transient material, A-weighted, 22kHz BW 126 dB with transient material, unweighted, 22 kHz BW 120 dB typical with program material, A-weighted, 22 kHz BW
Sample Rate	96kHz
Wordlength	24 bits
D/A Dynamic Range	112 dB unweighted, 115 dB A-weighted
Dynamic Range	112dB unweighted, 115dB A-weighted
Internal Processing	32 bit floating point
THD+Noise	0.004% typical at +4 dBu, 1 kHz, 0 dB input gain
Frequency Response	20 Hz- 40 kHz, +/-0.5 dB
Interchannel Crosstalk	<-85 dB at 1 kHz, 0 dB input gain
Pre EQ Type	One 31-band Graphic EQ on each input One EQ that is switchable between 31-band and 9-band Parametric on each input
EQ Gain	+/- 12dB
Input Insert Processing	Two selectable Insert Processing blocks per input: Noise Gate, Compressor, Auto Gain Control, De-Esser, Sub-Harmonic Synth, Advanced Feedback Suppression
Input Delay Length	Up to 682 mSec available
Routing/Mixing	4-input mixer available at each output allowing any input to be sent or mixed to any output
Output Insert Processing	Two selectable Insert Processing blocks per output: Noise Gate, AutoWarmth®, Compressor, Auto Gain Control, Peak Limiter, Sub-Harmonic Synth, Advanced Feedback Suppression
Crossover	configs: 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, 1x7, 1x8, 2x2, 2x3, 2x4 2x5, 2x6, 2x7, 2x8, 3x3, 3x4, 3x6, 3x7, 4x4, 4x5, 4x8
Crossover Filter Type	Bessel 6, 12, 18, and 24 dB per Octave Butterworth 6, 12, 18, and 24 dB per Octave Linkwitz-Riley 12, 24, 36, and 48 dB per Octave
Polarity	Positive and Negative
Phase Control	0 to -180 degrees in 5 degree increments
Output Delay Length	1365 mSec shared between the outputs
Transformer	I/O: optional
Controls	Ethernet, RS-232, Optional dbx ZC Wall Panels
Power Consumption	100V to 240V 50/60Hz, 45 Watts
Dimensions	3.5"x19"x12.15"
Unit Weight	11 lbs.
Shipping Weight	12.5 lbs.
