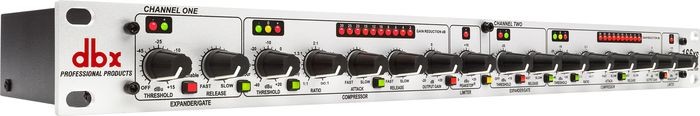

DBX Dual Compressor Limiter Gate 166XS

Model: DBX Dual Compressor Limiter Gate 166XS

Hãng: DBX/Mỹ (Chính Hãng)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo Hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 5.900.000 vnđ

DBX 166XS Dual Compressor Limiter Gate

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

THÔNG SỐ KỸ THUẬT:

Input Connectors	1/4" TRS, female XLR (pin 2 hot)
Input Impedance	>50kΩ balanced, >25kΩ unbalanced
Max Input	>+24dBu, Balanced or Unbalanced
Input Type	Electronically balanced/unbalanced, RF filtered
Sidechain	1/4" TRS Phone, Normalled: Ring = Output (send); tip = Input (return)
Sidechain Impedance	Tip = >10kΩ (Input), Ring = 2kΩ (Output)
Sidechain Max Input Level	>+20dBu (tip/input); >+20dBu (ring/output)
Output Connectors	1/4" TRS, female XLR (pin 2 hot)
Output Impedance	120Ω balanced, >60Ω unbalanced
Max Output	+21dBu balanced/unbalanced into 2kΩ or greater; >+18 dBm balanced/unbalanced (into 600Ω)
Frequency Response	20Hz - 20kHz; +0, -0.5dB, Typical 3dB points are 0.35Hz and 110kHz, unity gain
Noise	<-90dBu, 22Hz to 22kHz, no weighting, unity gain
THD+Noise	Typically <0.04%; Any Amount of Compression Up to 40dB@1kHz
IMD	Typically <0.08% SMPTE @ +10dBu (15dB Gain reduction)
Compressor Threshold Range	-40dBu to +20dBu
Compressor Threshold Characteristic	Selectable OverEasy® or hard knee
Compressor Ratio	Variable; 1:1 to Infinity:1; 60dB Maximum Compression
Compressor Attack Time	Variable program-dependent; 3ms to 340ms for 15dB gain reduction
Compressor Release Time	Variable program-dependent; 200dB/Sec to 3dB/Sec
Expander/Gate Threshold Range	OFF to +15dBu
Expander/Gate Ratio	10:1
Expander/Gate Max Depth	>60dB
Expander/Gate Attack Time	<500µs (from Maximum Depth)
Expander/Gate Release Time	Adjustable, 30ms to 3sec (to 30dB attenuation)
Limiter Threshold Range	0dBu to +20dBu
CMRR	>40dB, typically >55dB at 1kHz
Interchannel Crosstalk	<-80dB, 20Hz to 20kHz
Dynamic Range	>115 dB, unweighted
Stereo Coupling	True RMS Power Summing™
Power Consumption	15 Watts Maximum
Operating Temperature	0°C to 45°C (32°F to 113°F)
Dimensions	1.75" x 19" x 6.75" (4.45 cm x 48.2 cm x 17.15 cm)
Unit Weight	5.05 lb (2.29 kg)
Shipping Weight	7.20 lb (3.27 kg)
Reference	0dBu = 0.775Vrms
Operating Voltage	100 VAC 50/60Hz; 120VAC 60Hz; 230 VAC 50/60 Hz
