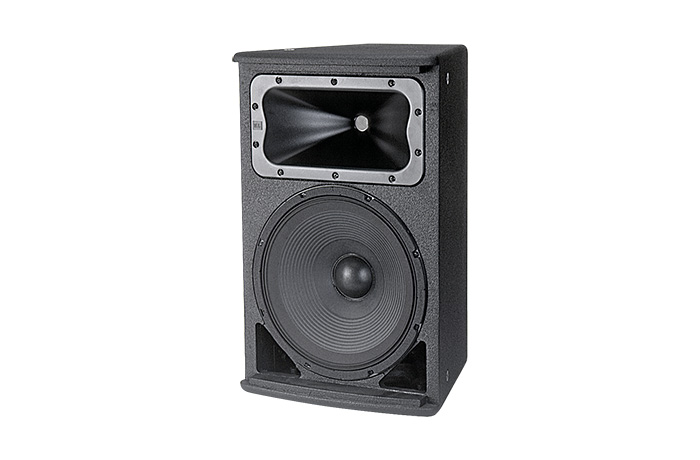

Loa JBL AC 2212

Model: Loa JBL AC 2212

Hãng : JBL/Mỹ (Chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Mexico

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 31.890.000 vnđ

AC2212/64/95/00 Lower-power 12" Two-way, 275W/1100W 8-ohms 127dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

Compact 2-Way Loudspeaker with 1 x 12" LF

AC2212 speakers are compact 2-way full range loudspeaker systems comprised of one 300 mm (12 in) low frequency driver and one voice-coil compression driver.

FEATURES

∧

PT™ Progressive Transition™ Waveguide for good pattern control with low distortion.
Bi-Amp / Passive Switchable.
Optional U-Bracket Model MTU-4.
For fixed installation applications requiring a compact cabinet, such as lecture halls, corporate learning centers, small performing arts facilities, theatrical sound design, auditoriums, sports facilities and themed
entertainment venues.

	Frequency Range	50 Hz - 19 kHz (-10 dB)
	Frequency Response	55 Hz - 17 kHz ( ± 3 dB)
	Coverage Pattern	/64: 60°x 40° /95: 90°x 50° /00: 100°x 100°
	Directivity Factor (Q)	7.1
	Directivity Index (DI)	8.5 dB
	Crossover Modes	Bi-amp/Passive switchable
	Passive Crossover Slopes	4th order (24 dB/oct) Transitional HP & LP, 1.3 kHz
	Transducer Power Rating (AES)	LF: 300 W (1200 W peak), 2 hrs 250 W (1000 W peak), 100 hrs HF: 50 W (200 W peak), 2hrs
	Long-Term System Power Rating (IEC)	Passive mode: 250 W (1000 W peak), 100 hrs
	Maximum SPL	Bi-amp mode: LF: 120 dB-SPL cont avg (126 dB peak) HF: 129 dB-SPL cont avg (135 dB peak) Passive mode: 120 dB-SPL cont avg (126 dB peak)
	System Sensitivity	Passive mode: 95 dB SPL (1W @ 1m)
