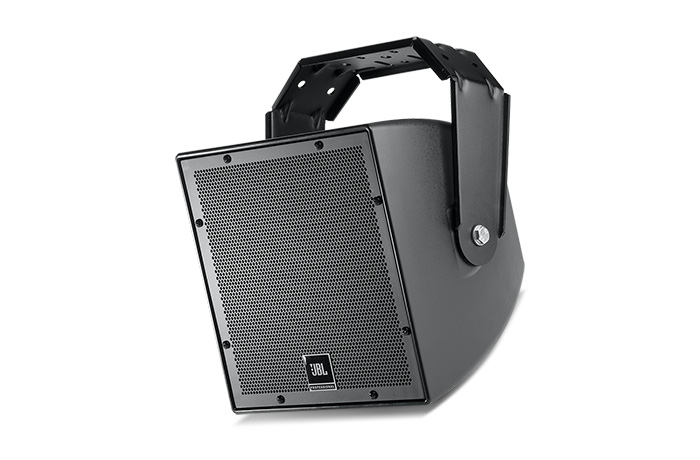

Loa JBL AWC 82

Model: Loa JBL AWC 82

Hãng: JBL/Mỹ (Chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 14.100.000 vnđ

AWC 82 All-Weather Compact 2-Way Coaxial Loudspeaker with 8" LF, 200W/800W 8-ohms 124dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

All-Weather Compact 2-Way Coaxial Loudspeaker with 8" LF

FEATURES

∧

Highly weather-resistant IP56 rating

Consistent 120° x 120° broadband pattern control

Components:
• 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil.
• 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.

Extraordinary clarity for speech, with extended frequency response for music.

Advanced high-slope crossover network for constant coverage and smooth, natural midrange.

250 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.

High-power passive crossover network.

Overload protection

80 Hz – 20 kHz frequency response.

200 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.

SPECIFICATIONS

	Frequency Range (-10 dB)	80 Hz – 20 kHz
	Frequency Response (±3 dB)	100 Hz – 20 kHz
	Coverage Pattern	120° x 120°
	Directivity Factor (Q)	8.1 (1 k – 16 kHz)
	Directivity Index (DI)	8.4 dB (1 k – 16 kHz)
	Long-Term System Power Rating (IEC)	250 W 2 hrs. 200 W 100 hrs
	Sensitivity (2.83V @ 1m)	94 dB (Ave. 100 Hz – 20 kHz)
	Maximum SPL	Direct 8Ω: 118 dB (peaks of 124 dB) 200 W Tap: 117 dB
	Crossover Network	1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
	Nominal Impedance	8 ohms
	Transformer Taps	70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W
	Low Frequency Driver	Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil.
	High Frequency Driver	25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
	HF Driver Protection	Minimum audibility SonicGuard™ HF overload protection
	Enclosure	ABS with Glass enclosure, heavily braced
	Attachment	Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
	Grille	Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
	Input Connection	CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
	Environmental	IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
	Dimensions	300 x 300 x305 mm (11.8 x 11.8 x 12.0), cabinet 331 mm (13.0 in) including gland nut 359 mm (14.2 in) including bracket extending to back
	Colors	Available in gray (similar to Pantone 420C) and black (-BK)
	Net Weight	9.8 kg (21.5 lb), 11.6 kg (25.5 lb) with U-bracket
	Shipping Weight	14.1 kg (31.0 lb)
	Included Accessories	U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.
