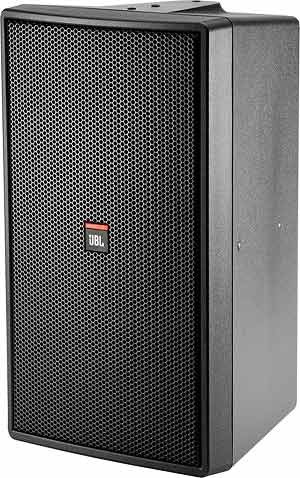

Loa JBL Control 29AV-1

Model: Loa JBL Control 29AV-1

Hãng: JBL/Mỹ (Chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 13.900.000 vnđ

CONTROL 29AV-1 8" Two-Way Loudspeaker, 150W/300W 8-ohms, 110W, 55W, 28W, 14W @ 70V/100V

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

FEATURES

Extended bandwidth, extremely smooth frequency response.

110° x 85° HF coverage, rotatable horn.

110 W transformer for 70 V or 100 V lines, with 8 ohm thru.

SonicGuard™ overload protection.

200 mm (8 in) Kevlar cone woofer,

25 mm (1 in) titanium diaphragm compression driver.

Includes InvisiBall™ mounting hardware, plus ten 6 mm attachment points for suspension and

optional U-bracket.

Sealed input panel cover and screwdown input terminals.

THÔNG SỐ KỸ THUẬT

Frequency Range

37 Hz –18 kHz
(-10 dB)

Power Capacity

300 W Continuous
Program Power
150 W Continuous
Pink Noise

Transformer Taps

70 V: 110 W, 55 W, 28 W & 14 W 100 V: 110 W, 55 W, & 28 W, Thru Position: 8 ohms nominal

Frequency Response

45 Hz – 18 kHz
( ± 3 dB)

Maximum SPL @ 1m

Short-Term: 120 dB; Long-Term: 114 dB

Nominal Sensitivity

90 dB (2.83V / 1m)

Nominal Coverage Angle

110° H x 85° V, rotatable

Directivity Factor (Q)

7.2 dB, averaged 500 Hz to 16 kHz

Directivity Index (DI)

8.6 dB, averaged 500 Hz to 16 kHz

Nominal Impedance

8 ohms

Minimum Impedance

6.3 ohms @ 230 Hz

Crossover Network

3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency

Low Frequency

200 (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fiberglass former

High Frequency

25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround

Enclosure Material

High impact polystyrene

Grille

Thermoset composite coated steel, WeatherMax multi-layer foam

Overload Protection

Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during exceptional overload conditions.

Environmental

IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.

Terminations

Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2).

Safety Agency Rating

Transformer is listed per UL1876

Colors

Black or white (-WH)

Dimensions (H x W x D)

520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in.)

Net Weight (ea)

12.2 kg (26.8 lb.)

Shipping Weight (ea)

14.0 kg (30.8 lb.)
