Loa JBL subwoofer ASB 6125

Model: Loa JBL subwoofer ASB 6125

Hãng: JBL/Mỹ (Chính hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Mexico

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 71.000.000 vnđ

ASB 6125 Double 15" Subwoofer, 1350W/5400W 4-ohms 138dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

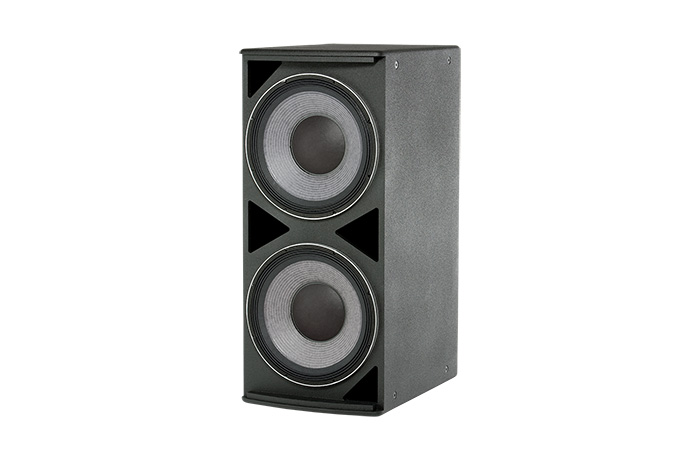

High Power Dual 15" Subwoofer

The ASB6125 is a high power, lightweight front-loaded vented subwoofer enclosure housing two JBL 2265H-1 Differential Drive® dual voice coil dual gap 15" woofers. These woofers feature neodymium magnets and ultra robust cones for extra long life.

FEATURES

∧

2 x 2265H-1 15" Differential Drive® dual voice coil dual gap, neodymium magnet transducers
1600 watts continuous pink noise, 6400 watts peak power handling capacity
Parallel/Discrete switchable input mode
Large vent area for high output with low distortion
For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products

SPECIFICATIONS

	Frequency Range (-10 dB)	32 Hz - 1 kHz
	Frequency Response (± 3 dB)	38 Hz - 1 kHz
	Transducer Power Rating	1600 W (6400 W peak), 2 hrs
	Input Modes	Drivers Parallel / Drivers Discrete
	Long-Term System Power Rating	1350 W (5400 W peak), 100 hrs.
	Maximum SPL (1m)	35 Hz - 400 Hz: 132 dB-SPL cont avg (138 dB peak)
	System Sensitivity	35 Hz - 400 Hz: 100 dB-SPL, 1W (2.0V) @ 1m
	Nominal Impedance	4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
	Low Frequency Driver	2 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® drivers
	Enclosure	Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
	Suspension Attachment	16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
	Finish	Black DuraFlex™ finish. White available upon request.
	Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
	Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
	Environmental Specifications	Mil-Std 810; IP-x3 per IEC529.
	Dimensions (H x W x D in vertical cabinet orientation)	965 x 419 x 597 mm (38.0 x 16.5 x 23.5 in)
	Net Weight	36.7 kg (81.0 lb)
	Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers
