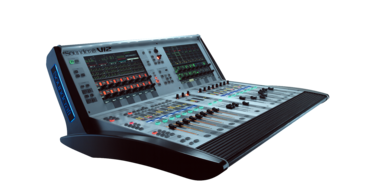

Soundcraft Mixer Digital Vi 2

Model: Soundcraft Mixer Digital Vi 2

Hãng: Soundcraft/Anh (Chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá: Liên hệ

Giá bán: Liên hệ

Vi2 Vi Series control surface for applications where space is very tight

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

Specifications

Frequency Response - Stagebox Mic input to Line output	+0/-1dB, 20Hz-20kHz
AES/EBU In to AES/EBU Out	+0/-0.2dB, 20Hz-20kHz
THD+Noise	22Hz-22kHz
Stagebox Mic In (min gain) to Local Line Out	<0.003% @ 1kHz
Stagebox Mic In (max gain) to Local Line Out	<0.020% @ 1kHz
Local Line In to Line Out	<0.003% @ 1kHz
Mic Input E.I.N	<-126dBu (150Ω source) 22Hz-22kHz bandwidth, unweighted
Residual Noise	-95dBu Stagebox line output; no inputs routed, Mix fader @0dB
CMRR, Stagebox Mic input	80dB @ 1kHz
Sampling Frequency	48kHz
Latency: Stagebox Mic Input to Local Line output	< 2ms @48kHz
AES/EBU Input Sample Rate	32–108kHz (with SRC enabled)
DSP Resolution	40-bit floating point
Internal Clock Accuracy	< +/- 50ppm
Internal Clock Jitter	< +/- 5ns
External Sync	BNC Wordclock, AES/EBU sync in, Video sync in
Input & Output Levels - Mic Inputs	+28dBu max
Input & Output Levels - Line Inputs	+22dBu max
Input & Output Levels - Line Outputs	+22dBu max
Input & Output Levels - Nominal Operating Level	+4dBu (-18dBFS)
Input & Output Impedances - Mic Inputs	2k7Ω
Input & Output Impedances - All other analogue Inputs	>10kΩ
Input & Output Impedances - Line Outputs	<75Ω
Input & Output Impedances - AES/EBU Outputs	110Ω
Oscillator	20Hz to 20kHz/Pink/White Noise, variable level
Stagebox HP Filter	80Hz fixed, 12dB per octave
Channel HP filter	20Hz-600Hz, 18dB per octave
Channel LP filter	1kHz-20kHz, 18dB per octave
EQ (Inputs and Bus Outputs) - HF	20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
EQ (Inputs and Bus Outputs) - Hi-Mid	20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - Lo-Mid	20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - LF	20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
Metering	Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
Mains Voltage Operating Range	90-264V, 47-63Hz, auto-ranging
Mains Power Consumption - Control Surface	120W (130W with redundant option)
Mains Power Consumption - Local Rack	140W (150W with redundant option)
Mains Power Consumption - Stagebox	140W (150W with redundant option)
Internal Mass Storage	16GB SSD Hard Drive
Operating Temperature	0°C – 45°C (32°F – 113°F)
Relative Humidity	0% – 90%, non-condensing Ta=40°C (104°F)
Storage Temperature	-20°C – 60°C (-4°F – 140°F)
Height (with factory flightcase)	Control Surface - 951mm (37.4"); Local Rack - 780mm (30.7"); Stagebox - 780mm (30.7")
Width (with factory flightcase)	Control Surface - 928mm (36.5"); Local Rack - 754mm (29.6"); Stagebox - 754mm (29.6")
Depth (with factory flightcase)	Control Surface - 467mm (18.4"); Local Rack - 568mm (22.3"); Stagebox - 568mm (22.3")
Weight (with factory flightcase)	Control Surface - 81kg (180lb); Local Rack - 50kg (110lb); Stagebox - 50kg (110lb)
