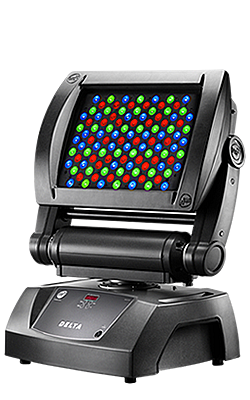

LED projectors DELTA 8 RGB R

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

LED projectors DELTA 8 RGB R

LED technology
108 x 1W LEDs: 36 x Red, 36 x Green, 36 x Blue
Luminous flux: 11.500 Lumens
Luminosity at 5 m: 4.446 Lux
LEDs average lifespan: 100.000 hours
RGB colour generation (16 million colours)
3 different colour mixing modes: RGB, CMY, HSV
Colour temperature variable on a linear range (2800°K ÷ 6500°K)
No infrared emission; no ultraviolet emission

Optical units
4 interchangeable lenses sets available (Spot, Medium flood, Wide flood, Very wide flood)

Hardware configuration
Motorized movement of the head on 2 axes

User interface
O-LED display

Independent operation
Fully programmable via built-in user interface
Master or Slave capability (chains of up to 32 interconnected units)

Remote control
Remotely controlled by cable or wireless
USITT DMX 512 serial digital protocol (reception / transmission)
15 DMX channels

Pan & Tilt
Motorized movement of the head on 2 axes (320° horizontal / 160° vertical)

Protection
IP65 protection level

Connections
Power Supply: cable gland 2 m (3 x 1,5 sq mm)
DMX IN/OUT: 5-pole M+F XLR connectors + 0,5 m cable (IP20)

Power supply
Full range AC 90-260 V, 50-60 Hz power supply

Power consumption
* 90 V - 2,6 A - 240 W
* 120 V - 2 A - 240 W
* 230 V - 1 A - 240 W
* 260 V - 0,9 A - 240 W

Thermal
Operating ambient temperature -10° / 40°

Weight
24 Kg
