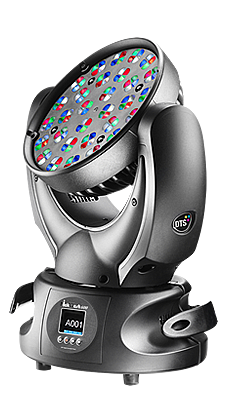

DTS-NICK 600 WASH ZOOM RGBW

Giá bán: Liên hệ

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

THÔNG SỐ NICK 600 WASH ZOOM RGBW

LED Technology
* 120 LEDs (30 Red, 30 Green, 30 Blue, 30 White); 9.750 lumens.
* Also available as NICK 600 CT WASH ZOOM (80 white + 40 amber LEDs - 2000°K - 6500°K colour temperature)
Optical group
* 3.100 Lux at 5 m (13,5°)
* 13,5°- 40° motorized linear zoom with high efficiency optical system (NICK 600 WASH RGBW ZOOM)
* three interchangeable optical units (Spot, Medium flood, Wide flood) (NICK 600 WASH RGBW)
* high mixing quality for RGBW colours, thanks to LEDs even distribution pattern
* uniform projection on surfaces, no matter what colour is used
Colour generation
* 16 million colours
* 2 colour mixing modes (RGBW / CMY)
* Variable linear colour temperature (2800°K - 6500°K)
Interface / Control / Programming
* Multi-function OLED graphic colour display + 4 soft keys: control / management / monitoring of the main parameters
* Controlled via DMX 512 standard digital communication protocol
* Wireless ready; Ethernet Ready
* Internal operating system updatable via D.T.S. RED BOX interface and hyperterminal program on windows based PC
DMX
17 DMX channels
Pan & Tilt
* ‘FAR’ Free Axis Rotation system (patent pending) optional: limitless pan / tilt rotation, in either direction, never having to reverse motion
* 16-bit movement resolution
* Ultra-fast movement: Pan 540° (2 sec.); Tilt 270° (1,2 sec.)
* 4 Selectable speed ranges
Power supply
* Electronic full-range AC 90-260 V 50/60 Hz
* Power consumption:
90 V - 2,65 A - 240 W
120 V - 2 A - 240 W
230 V - 1 A - 240 W
260 V - 0,9 A - 240 W
Connectors
* DMX: 4 XLR connectors (3-pole In and Out; 5-pole In and Out) by Neutrik;
* Power supply: POWERCON connector by Neutrik
Operating ambient temperature
-10° / 40°
Weight
7,9 Kg
International certifications
Certification CE; LED Class: Class 2 LED product
Included items
* 1 x POWERCON male cable connector (cod. 0520P014)
* 1 x XLR 5 Pins male cable connector (cod. 0508B028)
* 1 x XLR 5 Pins female cable connector (cod. 0508B027)
* 1 x “C” Clamp GQUICK with “Fast Lock” connection 1/4 turn (cod. 0521A014)
* User’s manual
