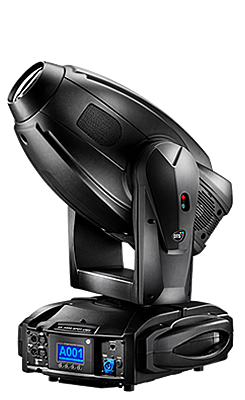

DTS-XR2000 SPOT CMY

DTS-XR2000 SPOT CMY
Giá bán: Liên hệ

Moving Head Projectors  XR2000 SPOT CMY

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02
  • Thông tin sản phẩm
  • Thông số kỹ thuật

 THÔNG SỐ XR2000 SPOT CMY

Lamp

Philips MSR Gold 700/2 Fastfit lamp (50.000 Lumens) base type PGJX50

Optical group

* 63.500 Lux at 5 m (10°)

* Improved optical group made with 11 coated lenses combined with a dichroic glass reflector

* 16-bit motorized focus

* 16-bit motorized iris

* 16-bit motorized linear zoom (10°- 35°) * linear dimmer / shutter / strobe (0,85 flash/sec to 10 flash/sec)

Colour generation

* sophisticated CMY colour synthesis system with 3 palettes for linear insertion

* colour wheel (7 colours + open) with linear selection for perfect 2-colour beams

Dynamic effects

3 overlapping wheels for multiple effects:

* customizable rotating gobo wheel (7 gobos)

* customizable fixed gobo wheel (8 gobos)

* animation wheel rotating in both directions

* 3-facet rotating prism * frost filter (soft edge)

Interface / Control / Programming

* Extra-wide, multi-function graphic LCD display (128 x 64)

* 4 soft-keys (control / management / monitoring of the main parameters)

* Controlled via DMX 512 standard digital communication protocol

* Wireless ready

* Ethernet ready

* Internal operating system updatable via D.T.S. RED BOX interface and hyperterminal program on windows based PC

DMX

 30 DMX channels

Pan & Tilt

* ‘FPR’ (Free Pan Rotation) optional

* 16-bit movement resolution

* Pan 540° (3,9 sec.); Tilt 270° (2,6 sec.)

* 4 Selectable speed ranges

* Pan/Tilt locking system with recessed buttons

* Automatic Pan/Tilt repositioning in case of knocks

Power supply

* Electronic ballast; 90-260 V  50 / 60 Hz

* Power consumption: 820 W Energy saving

* Power saving mode (the lamp dims to 50% six seconds after shutter closure)

Connectors

* DMX: 4 XLR connectors (3-pole In and Out; 5-pole In and Out) by Neutrik;

* Power supply: POWERCON connector by Neutrik

Operating ambient temperature

 -10° / 40°

Weight

44,5 Kg

Internal safety devices

* Overvoltage circuit protection and overtemperature circuit protection

International certifications Safety:

EN 60598-1: 1993 EN 60598-2-17: 1989 A1-A3: 1993

EMC: EN 55015 Included items

* 1 x MSR Gold 700/2 Fastfit lamp

* 1 x POWERCON male cable connector  (cod. 0520P014)

* 1 x XLR 5 Pins male cable connector      (cod. 0508B028)

* 1 x XLR 5 Pins female cable connector   (cod. 0508B027)

* 2 x“C” Clamp G100 black /professional    (max. load. 200Kg) (cod. 0521A015)

* Omega clamp with “Fast Lock”connection 1/4 turn 1 couple (2pieces) (cod. 02K00467)

* User’s manual

Packing

(LxDxH) 670 x 550 x 730 mm 49,5 Kg
