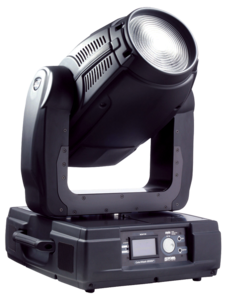

ROBE - COLORWASH 1200E AT

"/>
Image Header
THIẾT KẾ CUNG CẤP THIẾT BỊ LẮP ĐẶT : RẠP HÁT, CHIẾU PHIM – VŨ TRƯỜNG – BAR, KARAOKE – KHÁCH SẠN – HỘI THẢO ĐA NGÔN NGỮ- CÁC GIẢI PHÁP VỀ CÔNG NGHỆ THÔNG TIN VIỄN THÔNG.

ROBE - COLORWASH 1200E AT

ROBE - COLORWASH 1200E AT
Giá bán: Liên hệ

ROBE - COLORWASH 1200E AT

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02
  • Thông tin sản phẩm
  • Thông số kỹ thuật



THÔNG SỐ ROBE-COLORWASH 1200E AT

Source

  • Lamp: 1200 W short arc discharge
  • Base: GY22
  • Approved model: Philips MSR 1200 SA
  • Control: Automatic and remote on/off
  • Ballast: Electronic

Electrical Specification

    • Wiring options: 100/120/208/230/250 V, 50/60 Hz
    • Power consumption: 1480 VA at 230 V/50 Hz

Mechanical Specification

  • Height: 621 mm (24.5 ") - head in horizontal position
  • Width: 536 mm (21.1 ")
  • Depth: 620 mm (24.4 ")
  • Weight: 41 kg (90.4 lbs)

Thermal

  • Maximum ambient temperature: 40 °C (104 °F)
  • Maximum surface temperature: 135 °C (275 °F)

Control and Programming

  • Protocol: USITT DMX-512, RDM support
  • Control channels: 17, 21, 23, 24, 30
  • DMX channels: 5 protocol modes
  • Built-in demo sequences
  • Display: Blue/white LCD graphic
  • Pan/Tilt resolution: 16bit
  • Color wheel 1 positioning: 8 or 16bit
  • Color wheel 2 positioning: 8 or 16bit
  • Zoom: 8 or 16bit
  • Dimmer: 8 or 16bit
  • Controllable speed of fans
  • Movement control: Tracking or vector
  • Built-in analyzer for easy fault finding
  • Ethernet port: Art-Net protocol, ready for ACN
  • Data in/out: Locking 3-pin XLR & 5-pin XLR
  • Stand-alone operation
  • 3-editable programs, each up to 99 steps

Electromechanical Effects

  • Cyan: 0-100%
  • Magenta: 0-100%
  • Yellow: 0-100%
  • CTO: 0-100%
  • Colour wheel 1: 6 replaceable ″SLOT&LOCK″ colours + open
  • Colour wheel 2: 6 replaceable ″SLOT&LOCK″ colours + open
  • Dimmer/Shutter: Full range dimming and variable strobe effect
  • Zoom: 10° - 87° depending on the lens type used
  • Pan: 530°
  • Tilt: 280°

Rigging

  • Mounting points: 8 pairs of ¼-turn locks
  • Fastening system: ROBE‘s own 2x Omega clamps
  • Fixation option: Pan/Tilt-lock mechanism

Optional Accessories

  • Remote control IR
  • Module of lens D200 PC
  • Top Hats
