THIẾT KẾ CUNG CẤP THIẾT BỊ LẮP ĐẶT : RẠP HÁT, CHIẾU PHIM – VŨ TRƯỜNG – BAR, KARAOKE – KHÁCH SẠN – HỘI THẢO ĐA NGÔN NGỮ- CÁC GIẢI PHÁP VỀ CÔNG NGHỆ THÔNG TIN VIỄN THÔNG.

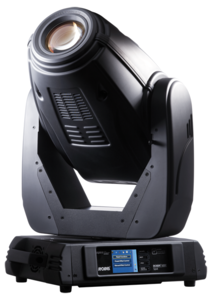

ROBE-ROBIN 600E Spot

ROBE-ROBIN 600E Spot
Giá bán: Liên hệ

ROBIN 600E SPOT

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02
  • Thông tin sản phẩm
  • Thông số kỹ thuật



THÔNG SỐ ROBIN 600E SPOT

Source

  • Lamp: Compact high-presure metal halide lamp
  • Base: PGJX28
  • Approved model: Philips MSR Gold 575/2 MiniFastFit
  • Control: Automatic and remote on/off
  • Ballast: Electronic

Optical System

  • Dichroic glass reflector for maximising the light efficiency
  • Beam angle: Zoom range: 10° – 45° (2° – min. zoom with iris, 60° max. zoom with frost)

Electrical Specification

    • Power supply: Electronic auto-ranging
    • Input voltage range: 100–240 V, 50/60 Hz
    • Power consumption: 770 VA at 230 V/50 Hz


Mechanical Specification

  • Height: 516 mm (20.3 ") – head in horizontal position
  • Width: 433 mm (17.0 ")
  • Depth: 470 mm (18.5 ")
  • Weight: 21.7 kg (47 lbs)
  • Fixation option: Pan/Tilt-lock mechanism

Thermal

  • Maximum ambient temperature: 45 °C (104 °F)
  • Maximum surface temperature: 80 °C (176 °F)

Static Gobos

  • Metal gobos - outside diameter: 26.9 mm, image diameter: 22.5 mm, aluminium, thickness: 0.5 mm
  • Glass gobo - high temperature borofloat

Rotating Gobos

  • Glass gobos - outside diameter: 26.8 mm, image diameter: 22.0 mm, thickness: 1.1 mm, max. thickness: 4.0 mm, high temperature borofloat or better glass

Control and Programming

  • Setting & Addressing: ROBE Navigation System 2 (RNS2)
  • Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2
  • Control channels: 23, 25, 32
  • 3 DMX protocol modes
  • 3-editable programs, each up to 100 steps
  • Stand-alone operation
  • QVGA Robe touch screen with battery backup gravitation sensor for auto screen positioning operation memory service log with RTC
  • Pan/Tilt resolution: 8 or 16 bit
  • Movement control: Tracking and vector
  • Colour wheel positioning: 8 or 16bit
  • Static gobo wheel positioning: 8 or 16bit
  • Rotating gobos: 8 or 16bit
  • Iris: 8 or 16bit
  • Frost: 8 bit
  • Focus: 8 or 16bit
  • Dimmer: 8 or 16bit
  • Ethernet port: Art-Net protocol, ready for ACN
  • Data in/out: Locking 3-pin & 5-pin XLR
  • Built-in analyser for easy fault finding
  • Optional wireless version available: CRMX™ technology from Lumen Radio

Electromechanical Effects

  • Cyan: 0–100%
  • Magenta: 0–100%
  • Yellow:0–100%
  • CTO: 0–100%
  • Hot-spot control: Hot-or-not-spot
  • Colour wheel: 7 replaceable "SLOT&LOCK;" dichroic filters + open, trapezoid shape
  • Static Gobo wheel: 9 replaceable "SLOT&LOCK;" black and white gobos + open
  • Rotating Gobo wheel: 7 rotating, indexable, replaceable "SLOT&LOCK;" dichroic and glass gobos + open
  • Iris: Motorized, stepless, up to 3 Hz
  • Prism: 3-facet 11° indexable prism rotating in both directions at different speeds
  • Frost effect: Separate, variable
  • Dimmer/Shutter: Full range dimming and variable strobe effect, Electronic strobbing "ZAP"
  • Motorized zoom and focus
  • Pan: 540°
  • Tilt: 280°

Rigging

  • Mounting points: 2 pairs of ¼-turn locks
  • 2 x Omega bracket with ¼-turn quick locks
  • Safety chain/rope attachment point
